RPM Adjustment Bulb Replacement
Direct drop-in LED replacements for the incandescent bulbs in the RPM adjustment panel of DC-motor BeoGram 4002 and 4004. The boards solder directly to the original solder points.
BeoGram 400X · Open source part
LED RPM adjustment lights
The bulbs behind the 33 and 45 rpm scales on the BeoGram 4002 and 4004 panel have usually burnt out after more than 40 years. I replace them with a warm white LED PCB of my own design.
The 33 and 45 rpm scales on the BeoGram 4002 and 4004 operating panel are each lit by a small incandescent bulb, rated 24 V and 40 mA, sitting behind the potentiometer housing. The speed relay 1RL1 switches between them, so the lit scale shows the selected speed. After more than 40 years most of these bulbs have burnt out, and the panel no longer shows which speed is set.

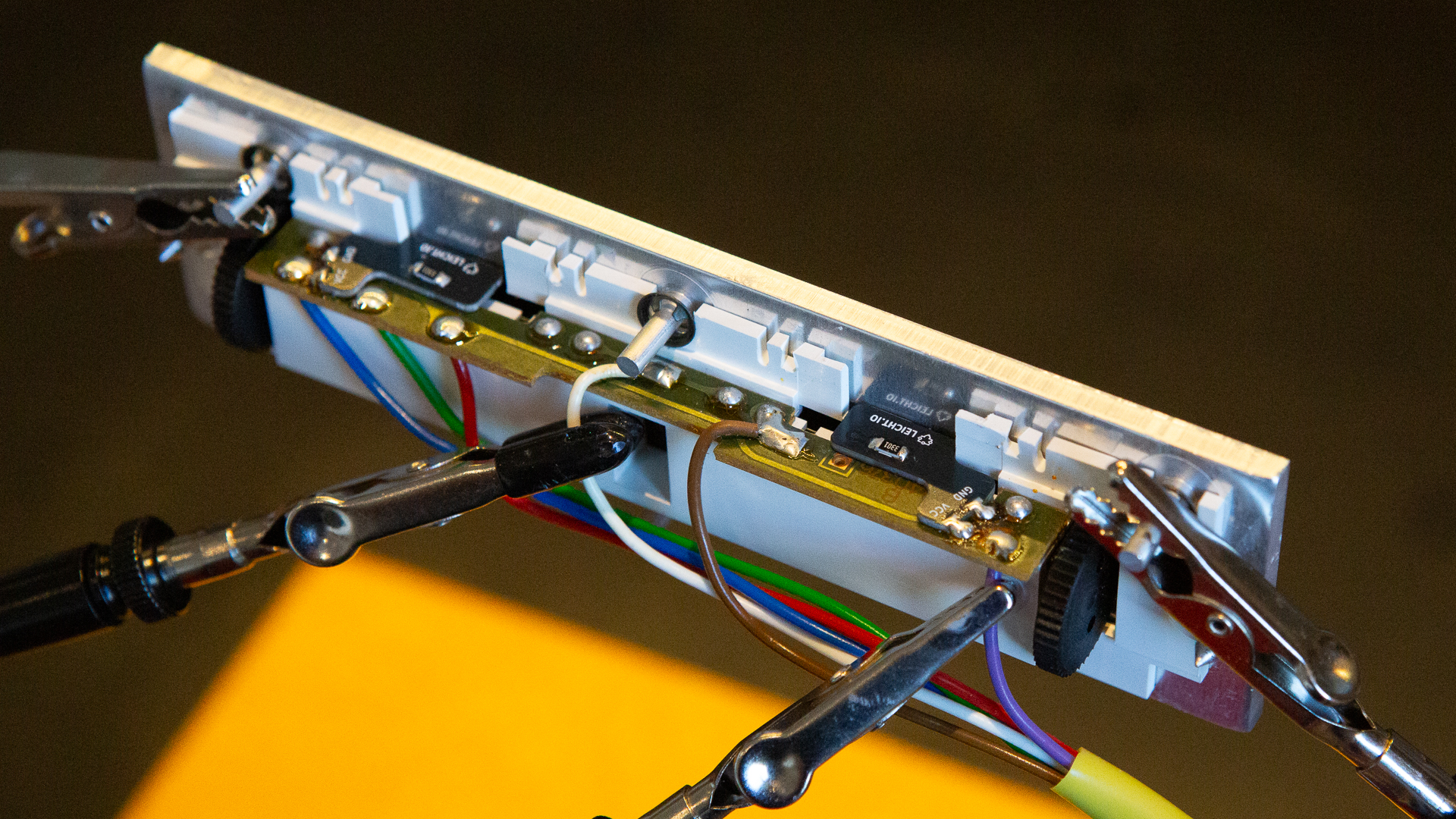

I replace them with an LED PCB I designed for the job. A warm white LED gives a colour close to the original bulb, and the PCB solders directly to the original lamp points, so fitting it needs no changes to the wiring. A 3D printed housing locks in behind the potentiometer housing, where the original bulb sat.
The PCB and housing are my own design, listed under parts, with the design files on GitHub.
Parts
