Piezoelectric Element

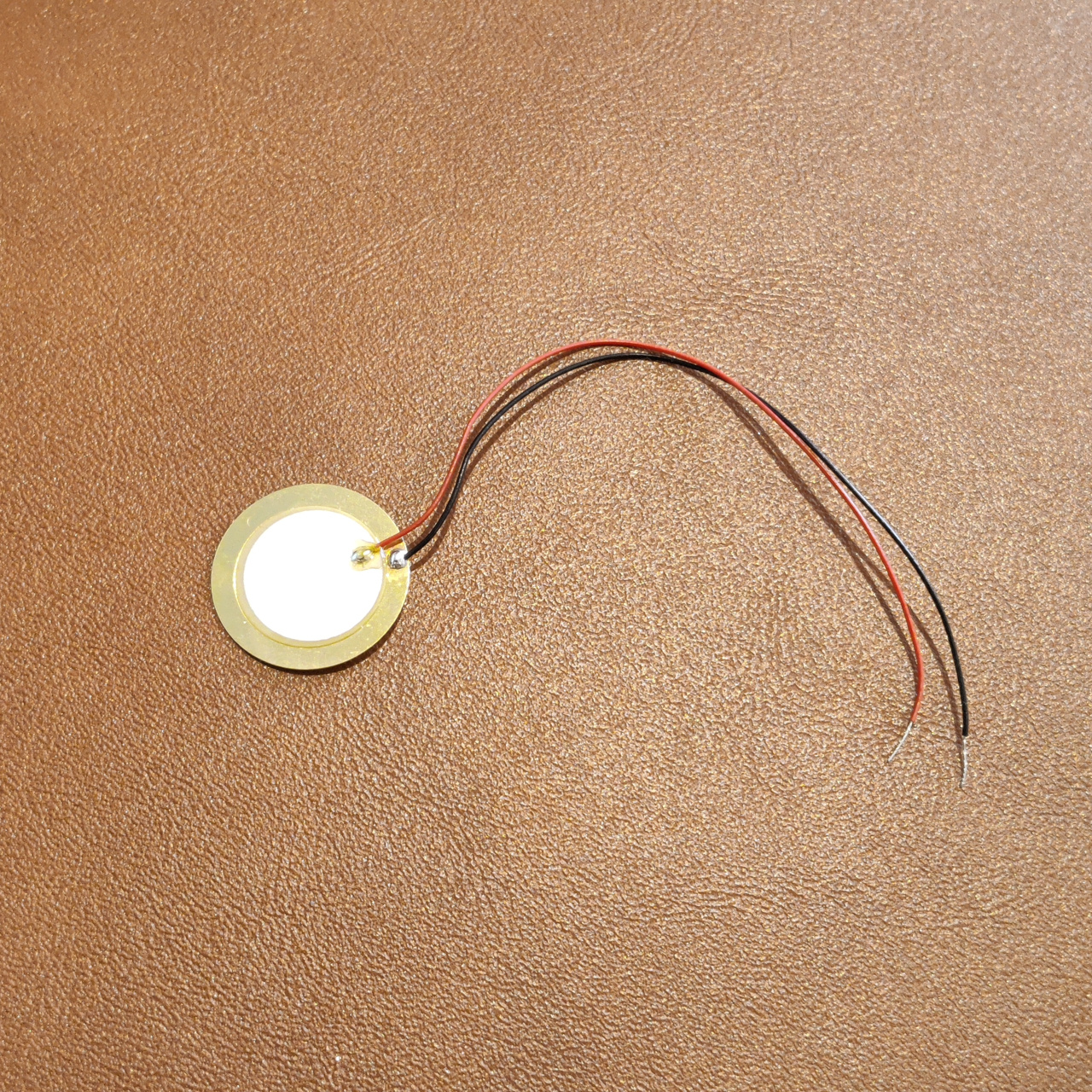

Replacement piezoelectric element for the BeoLink 7000. It restores the wake-on-tap function of the top plate. Fitting it means opening the bottom cover and soldering it to PCB1.
BeoLink 7000 · Open source part
Piezo element
Tapping the top plate wakes the BeoLink 7000, thanks to a small piezo element underneath. When that stops working, the piezo has usually failed with age, and I replace it.
One of my favourite details on the BeoLink 7000 is that you wake it by tapping the top plate (9001). A small piezoelectric element glued under the plate picks up the tap.
It's usually reliable, but the piezo element can fail with age, and that's what had happened on this unit. Tapping the plate did nothing. The service manual traces this fault with an oscilloscope, looking for a wake up pulse on pin 14 of P5 and across the piezo each time the plate is tapped. When the piezo gives no pulses, the element itself has failed.
I replace it with a piezo element that matches the original. It sits under the top plate, reached through the bottom of the remote via PCB1.
PCB1 is attached to the top plate with double sided tape, so it has to be pried loose carefully without bending the plate, which is easy to damage. The new piezo then goes in, with fresh double sided tape under the top plate.
The replacement piezo element is listed under parts. If the top plate itself is scratched or dented, I've also made a new stainless steel top plate.
