BeoLink 7000 · Open source part
The top plate on the BeoLink 7000 is almost always scratched or dented. I replace it with a new plate in mirror polished stainless steel.
After restoring quite a few BeoLink 7000s, I've found that the top plate (9001) is almost always scratched or dented. It's the first part you see and touch, so it's also the first to show its age. On this unit, a previous owner had fitted the battery with the wrong screws, which pushed up from behind and dented the plate.
The original plate is anodised aluminium. I couldn't find anyone to make it in aluminium at the original thickness, so the first run is stainless steel, mirror polished to match. Stainless steel is about three times as stiff as aluminium, so it resists dents far better, and side by side the difference in tone is small. I'm still looking for a supplier who can make it in anodised aluminium.
The plate is held with double sided tape from the factory, so the old one comes off slowly from one corner. I clean away the old adhesive and lay fresh tape.
A 3D printed bracket I designed puts the piezo element, which wakes the remote when you tap the plate, in the same position every time. A second 3D printed jig places the new plate exactly where the original sat.
With the piezo wires soldered back on, tap to wake works again. While it's open, I also clean the old grease off the plastic strips (9019).
The Bang & Olufsen logo is still missing. I haven't yet found anyone who can laser engrave stainless steel to the original standard.
The top plate and piezo element are listed under parts.

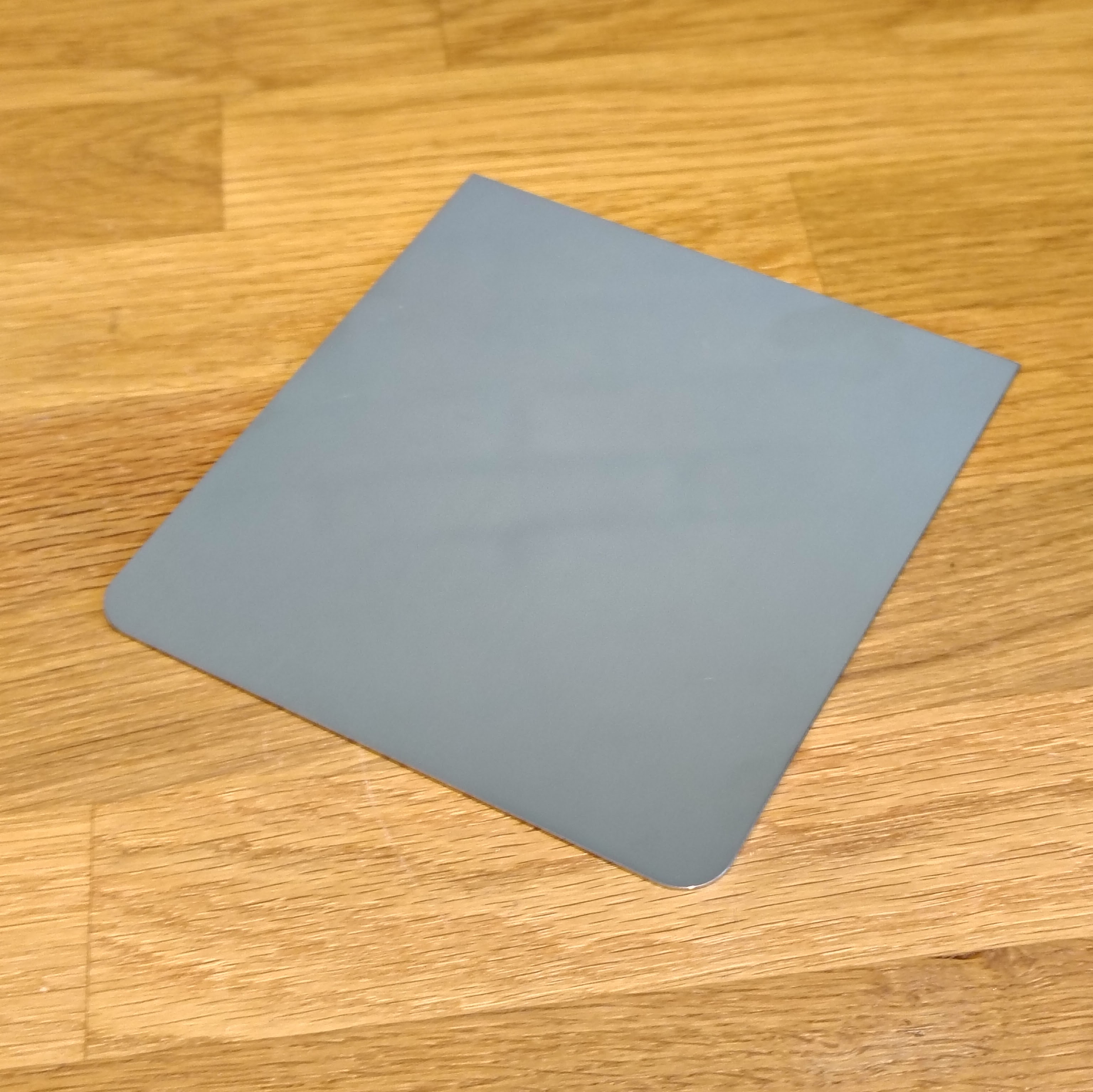

Replacement top plate (#9001) for the BeoLink 7000, made from mirror-polished stainless steel to match the original finish. Stainless steel is much stiffer than the original anodised aluminium, so it resists dents better. It is fitted with double-sided tape, with a 3D-printed bracket for the piezo element and a jig for alignment. It does not have the Bang & Olufsen logo.
