Top Plate
BeoLink 7000

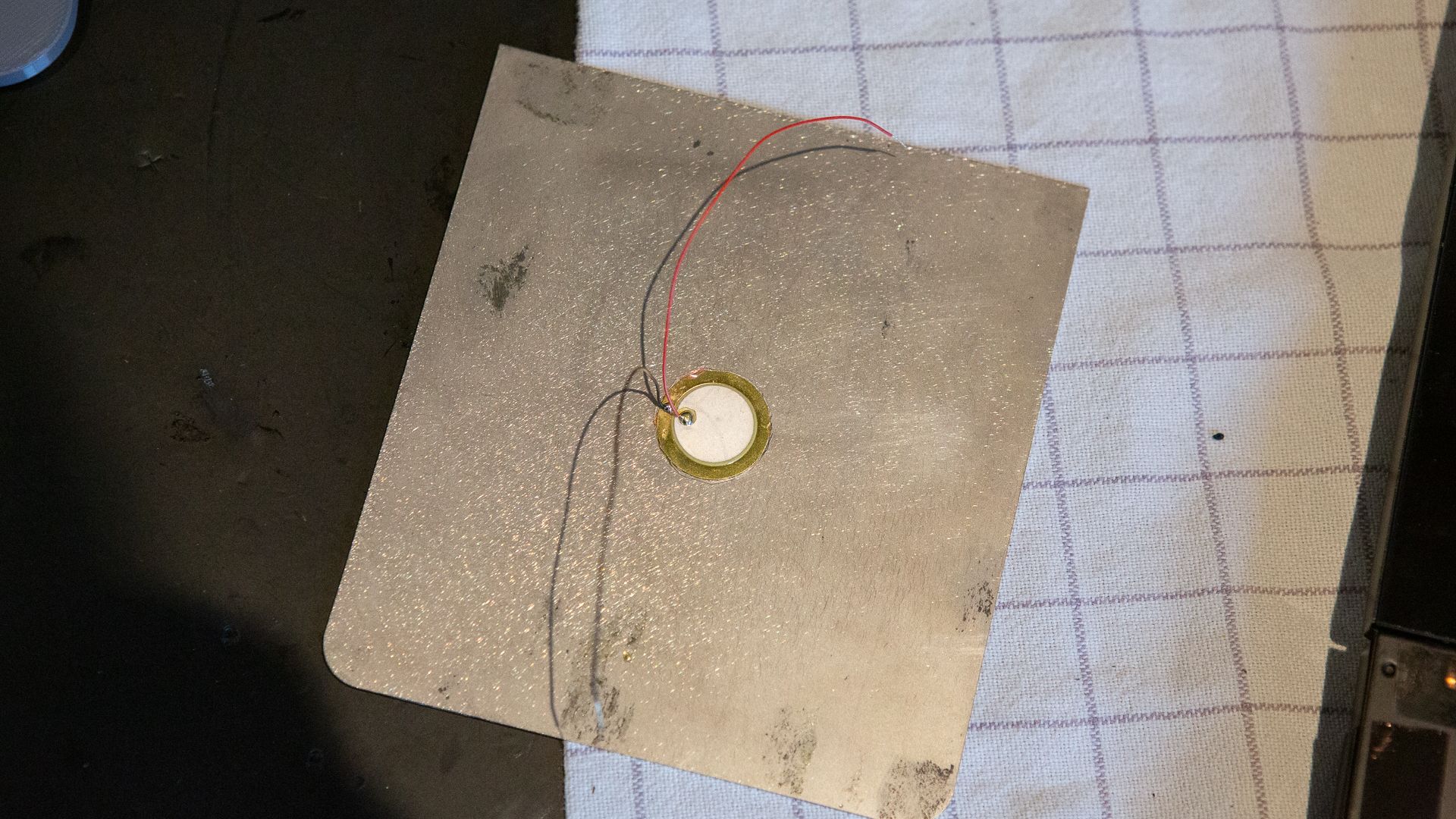

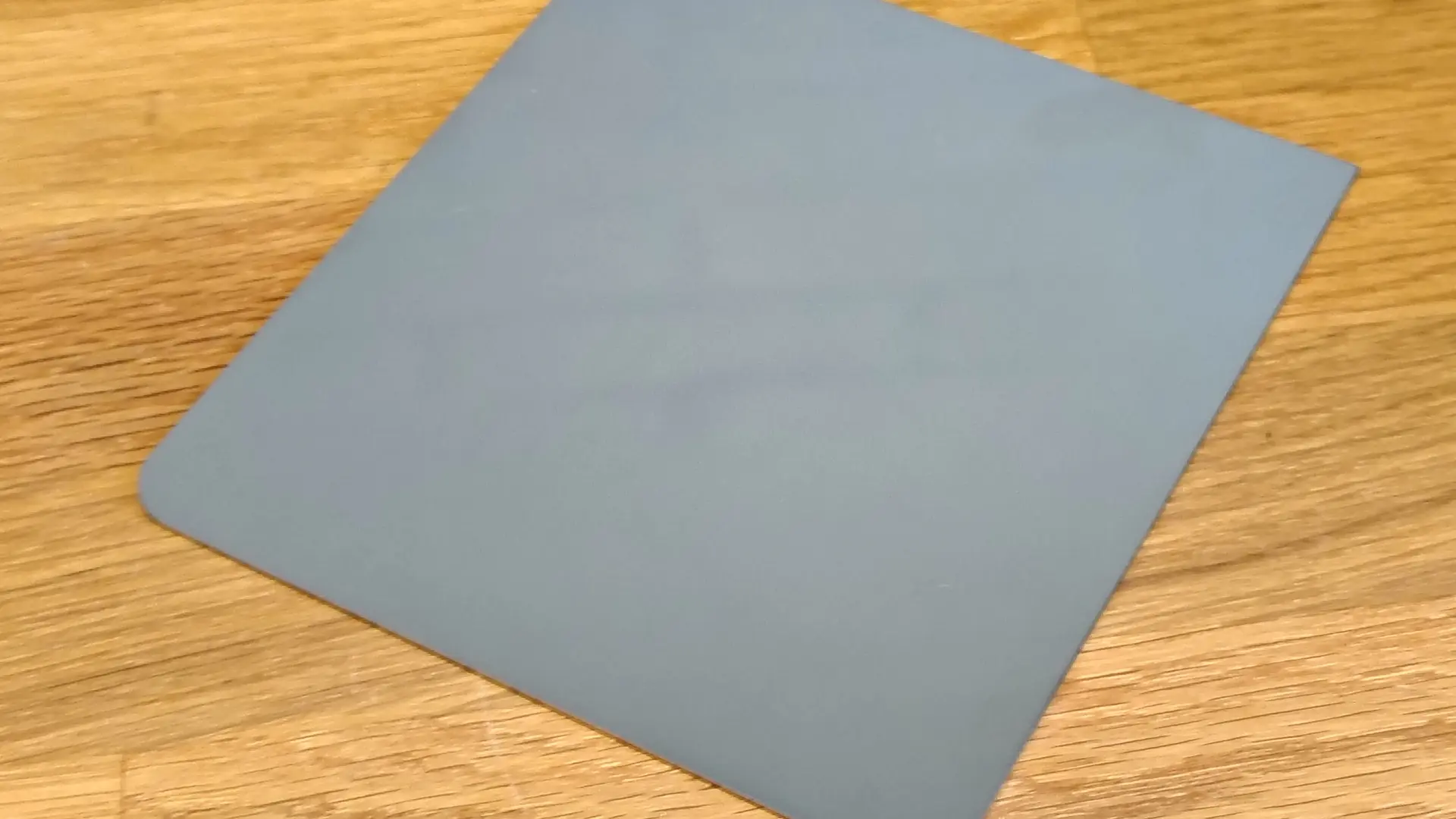

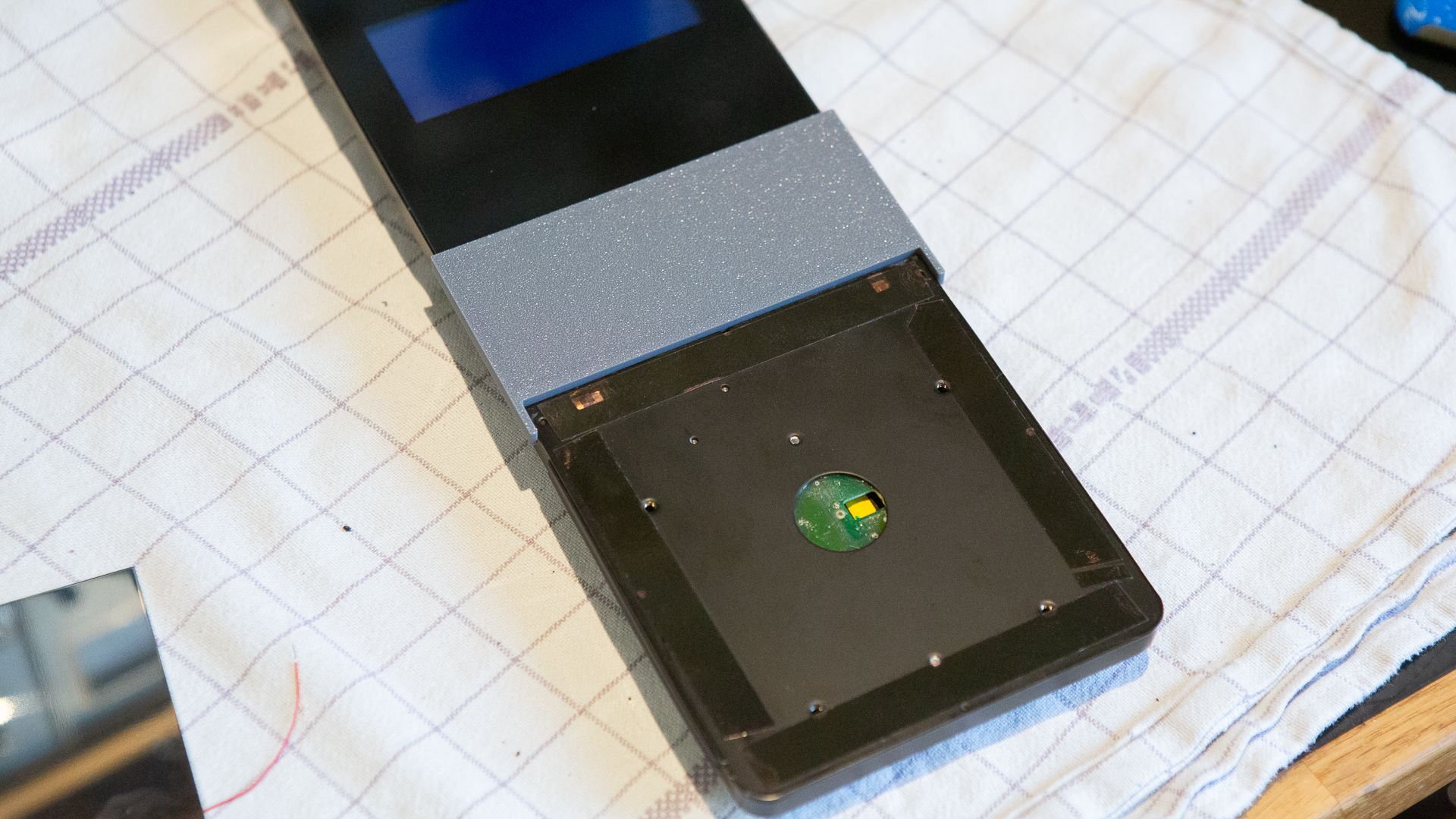

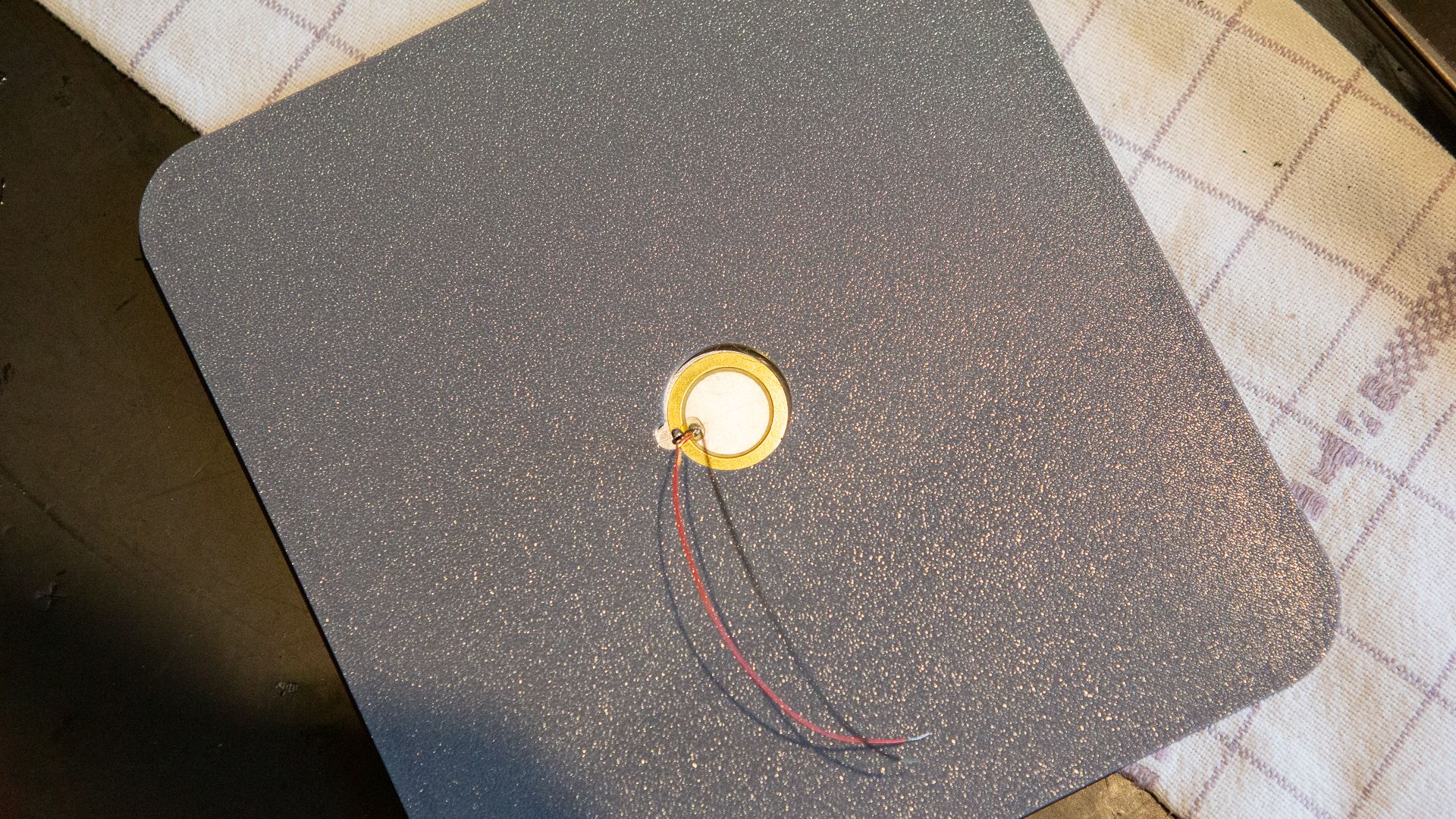

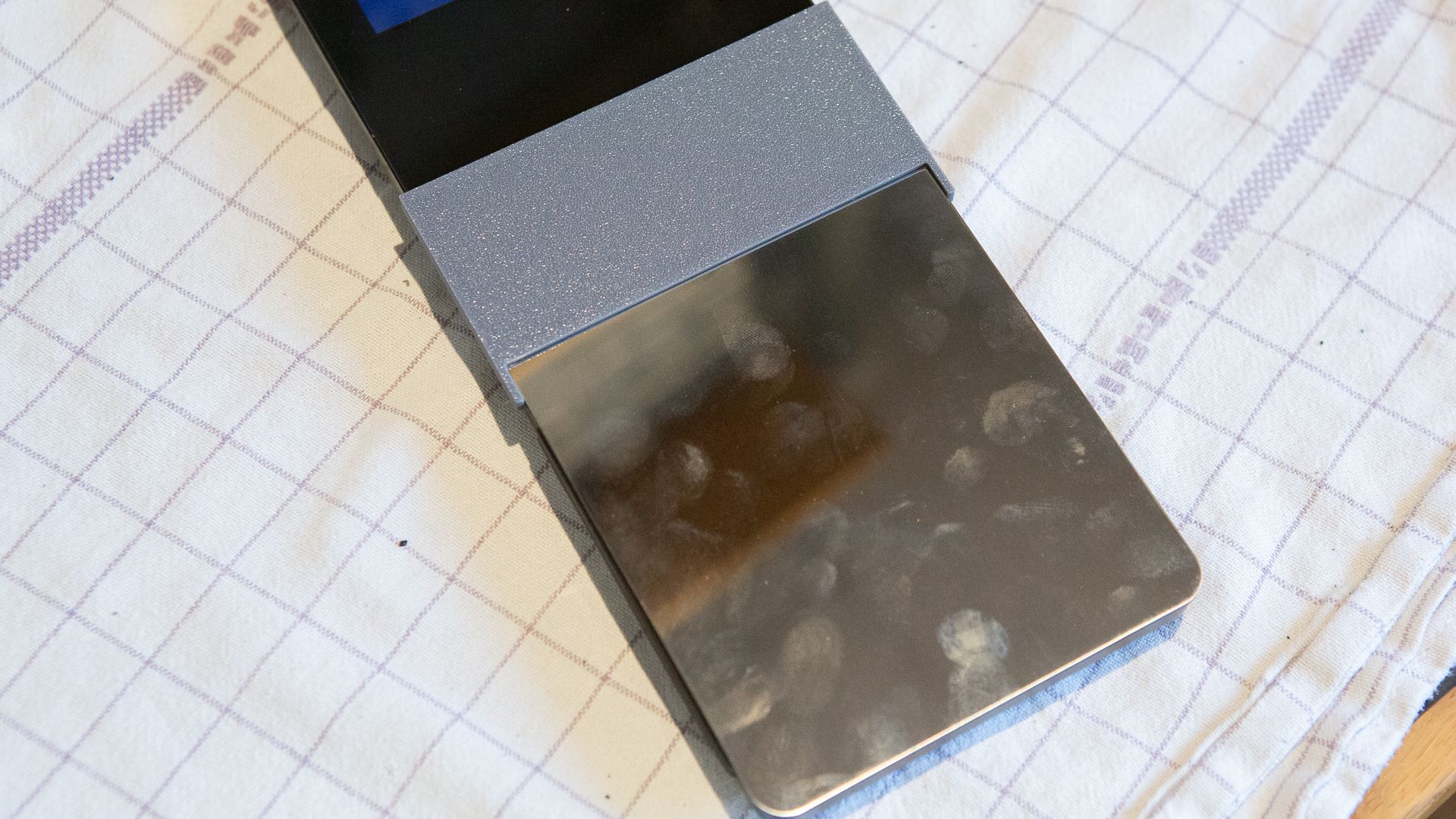

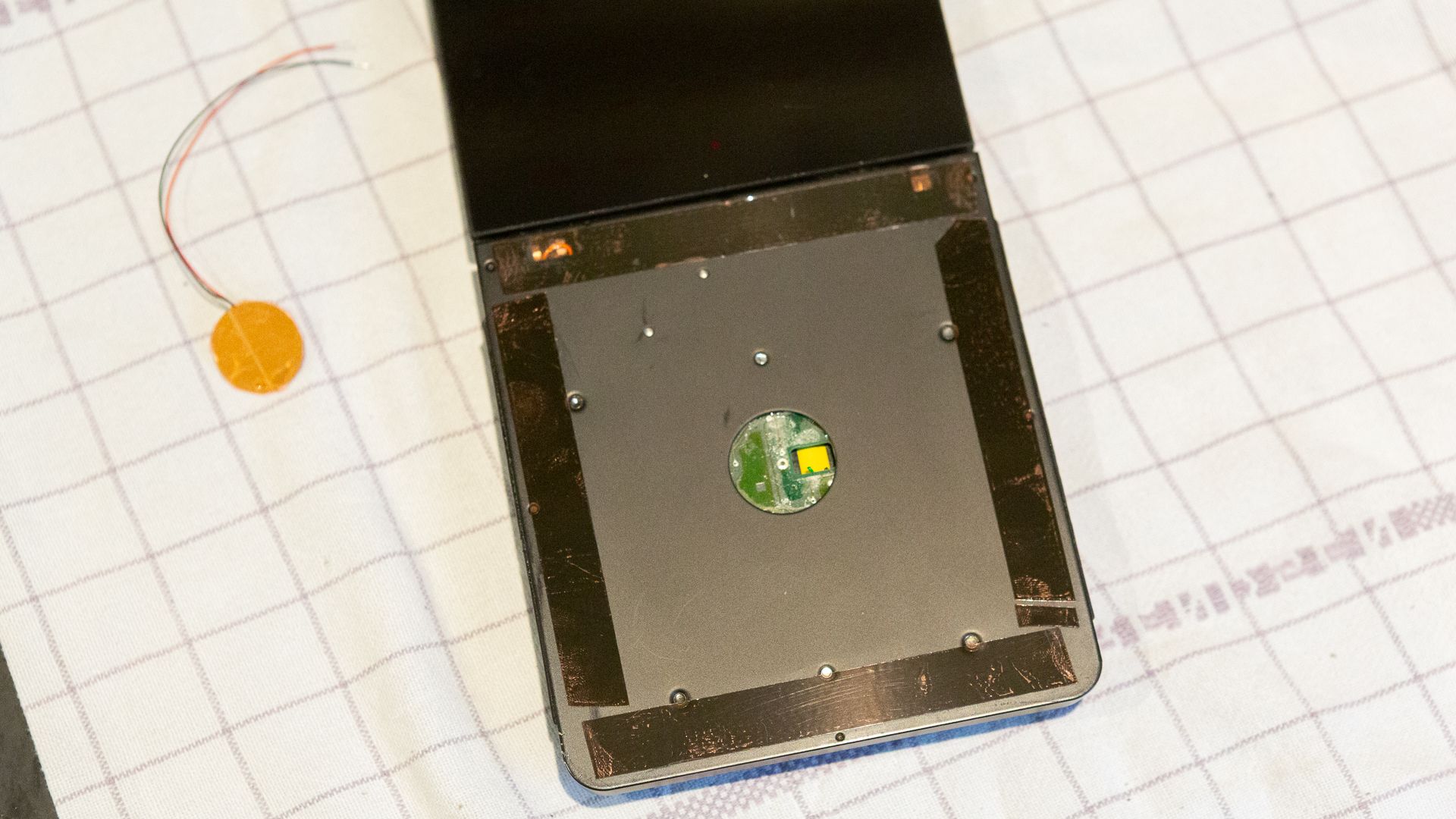

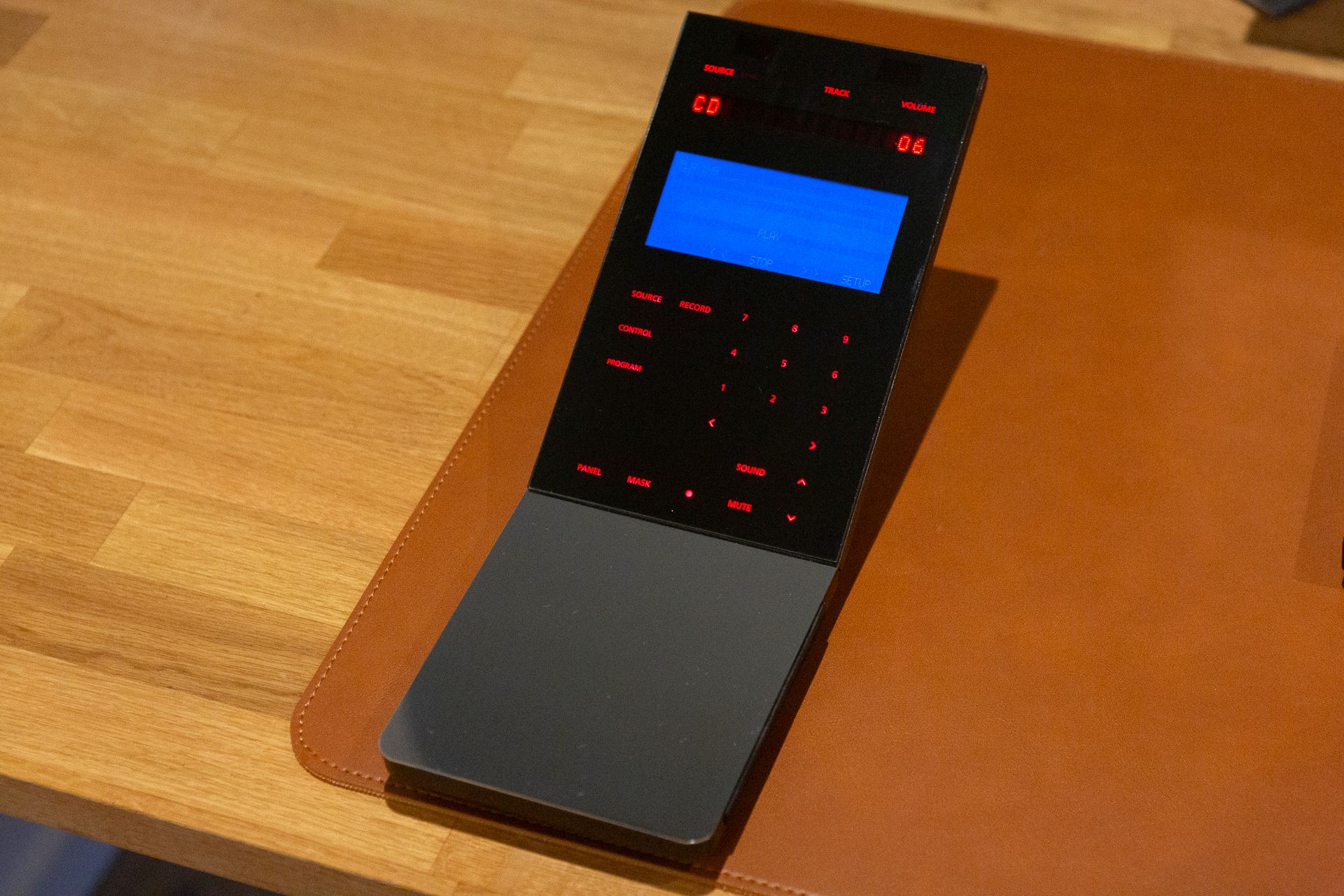

The BeoLink 7000’s elegant top plate is often the first thing to show wear — scratches, dents, and age quickly dull its appearance. On this unit, incorrect screws had even pushed up from beneath, leaving visible marks. To truly complete the restoration, a new top plate was needed. Read more about the replacement here.
Below are images of the PCB, and you can find the schematics — and even contribute — by following the GitHub link above.
